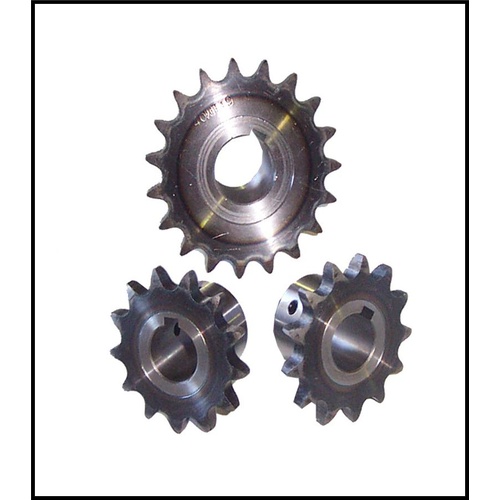

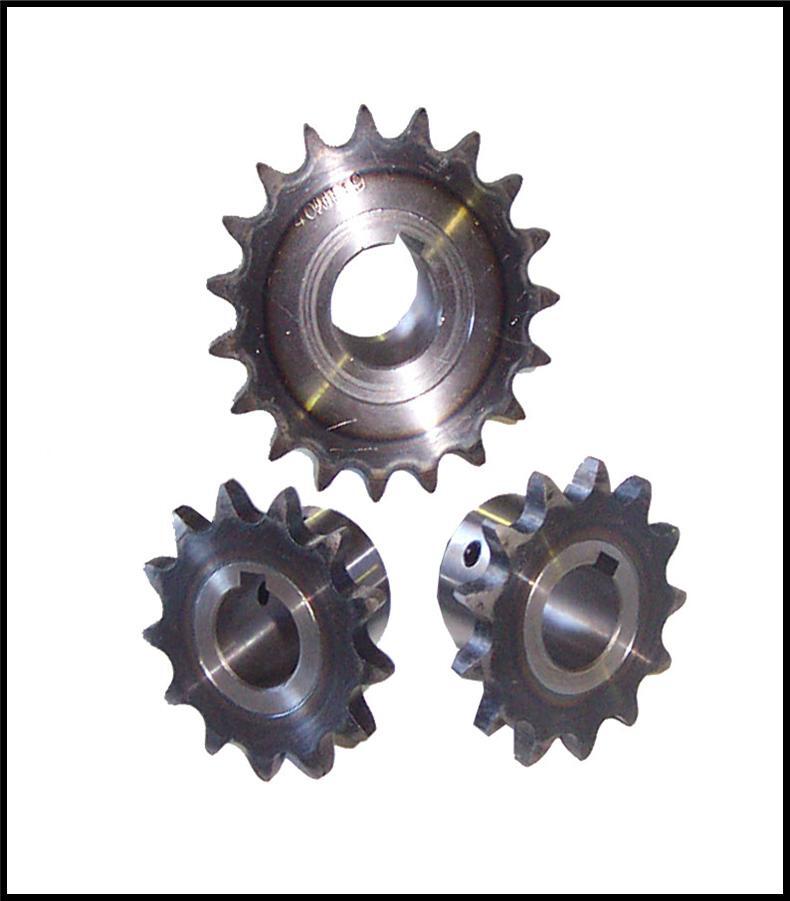

08B-1 WELD FIT PLATE SPROCKET 16 TOOTH FOR WT HUB HT

08B-1 WELD FIT PLATE SPROCKET 16 TOOTH FOR WT HUB HT

GB Weld fit product enables users to get fast replacement finish bored products without the high cost and low availability of skilled machining.  Traditionally, sprockets are supplied pilot bore which then have to be bored and keyed at high cost and slow turn around.

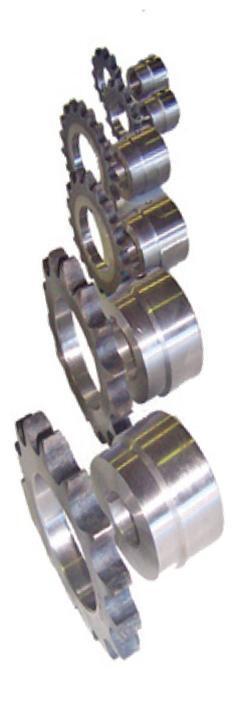

The easily assembled weld fit design allows you to quickly select sprocket pitch; tooth number and pre-bored hub required which is then completed with a simple welding procedure.  Taper bore press fit design ensures plate is installed in line prior to welding.

Most end users have access to the equipment required for Weld Fit Sprocket assembly enabling them to get to the finished product quickly and inexpensively.  This in turn reduces cost and machine down time and restoring productivity.

Weld fit sprockets also have the ability to emergency spares inventory by consolidating standard bore sizes against sprocket pitch.

GB Weld Fit Sprocket come with induction hardened teeth as standard ensuring your new sprocket lasts the distance.  They are available to suit a standard range of imperial and metric bore sizes to suit most standard shafts from 3/8 to 1 7/8 inch in imperial and 12 to 45mm in metric.

The existing range is available to suit American and British standard transmission chains from ½ inch to 1” pitch covering the bulk of the sprockets used in general transmission across many industries.

(08WT16)
