RM45 Rigid Coupling F & H 4545

RM45 Rigid Coupling F & H 4545

GB RM Rigid couplings are used to rigidly connect two shafts. Rigid couplings are often used to facilitate
ease-of-maintenance or simply to aid machine assembly. Taper Fit bushes provide a secure fit on the driving and driven shafts, ensuring installation and removal is simple.
Selection Procedure
1. Select a size of RM coupling to fit the larger of the driving or driven shafts.
2. For severe applications, select the next size up RM coupling.
NOTE: HF or FF assemblies can be used on horizontal shafts; only FF assemblies are to be used on vertical shafts.

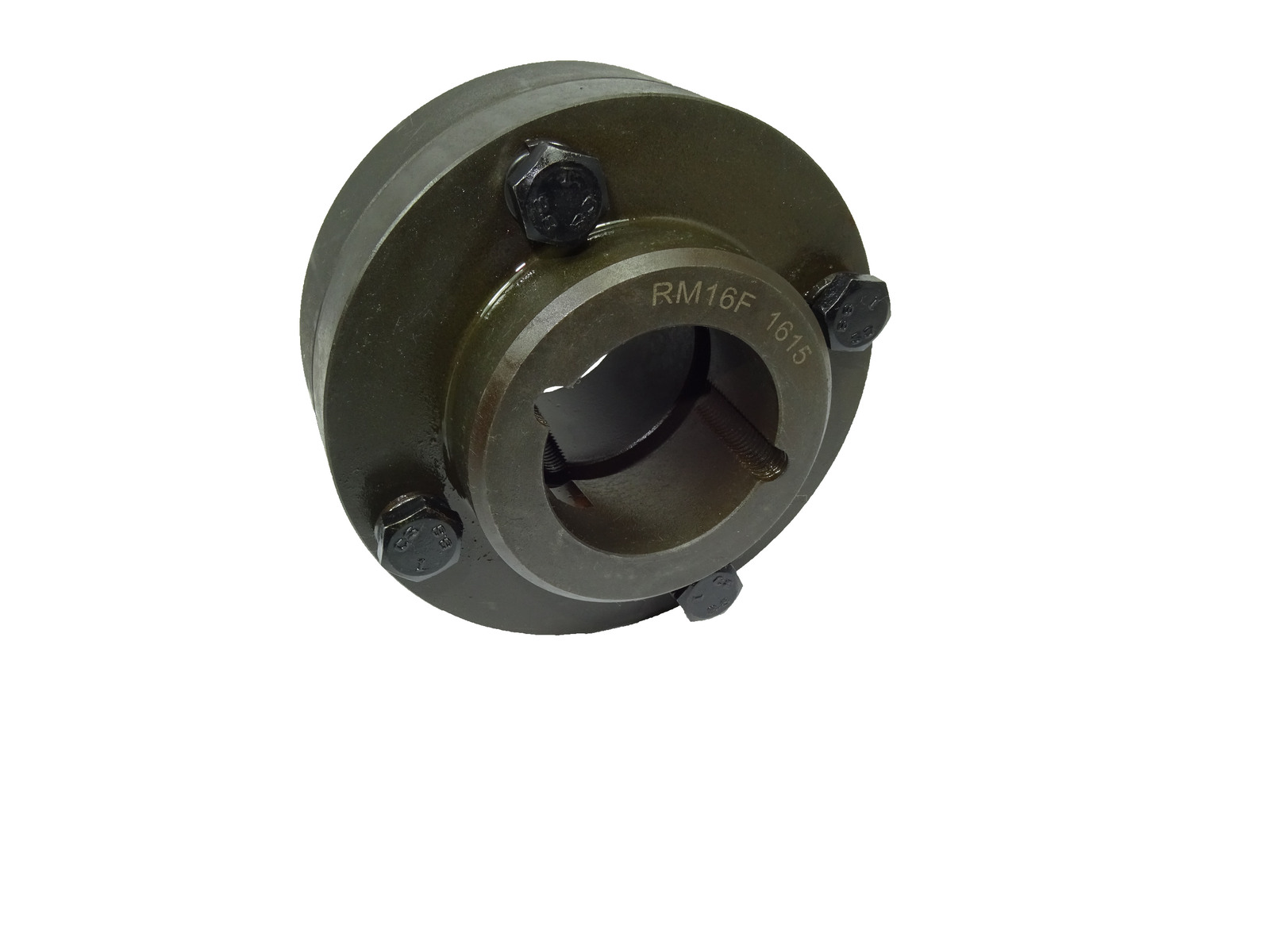

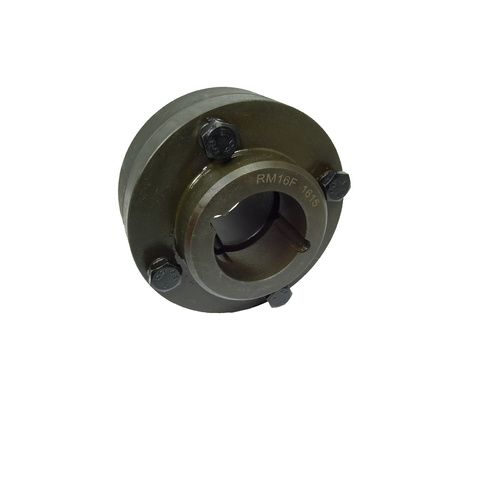

Photo shown is for RM16FF only and is generic for full range; refer to catalogue specifications for more detailed information on specific coupling model.

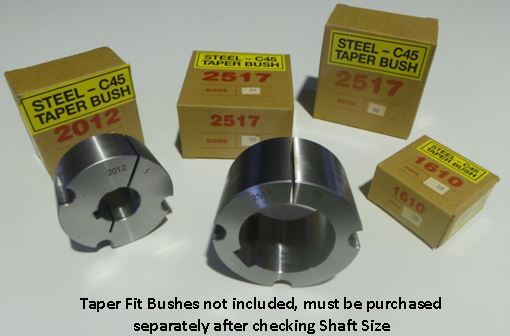

Taper Fit bushes are required to make up a complete coupling assembly ready for instantiation between shafts.   If required these need to be ordered in addition to the coupling assembly by confirming shaft size of connected equipment.

(RM45)
